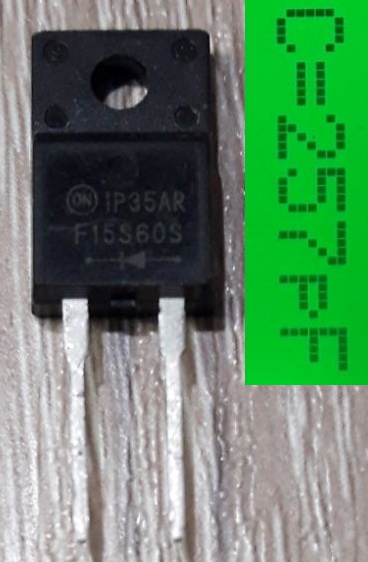

Диод F15S60

600v 15a

Features• High Speed Switching, trr < 35ns @ IF = 15A• High Reverse Voltage and High Reliability• RoHS compliant

15A, 600V STEALTHTM II RectifierThe FFP15S60S is STEALTHTM II rectifier with soft recoverycharacteristics. It is silicon nitride passivated ion-implanted epi-taxial planar construction. This device is intended for use as freewheeling of boost diode inswitching power supplies and other power swithching applica-tions. Their low stored charge and hyperfast soft recovery mini-mize ringing and electrical noise in many power switching circuitsreducing power loss in the switching transistors.Absolute Maximum RatingsTC = 25oC unless otherwise notedThermal CharacteristicsPackage Marking and Ordering InformationSymbolParameterRatingsUnitsVRRMPeak Repetitive Reverse Voltage600VVRWMWorking Peak Reverse Voltage600VVRDC Blocking Voltage600VIF(AV)Average Rectified Forward Current @ TC = 123oC 15AIFSMNon-repetitive Peak Surge Current60Hz Single Half-Sine Wave 150ATJ, TSTGOperating and Storage Temperature Range-65 to +150oCSymbolParameterRatingsUnitsRθJCMaximum Thermal Resistance, Junction to Case 1.3oC/WDevice MarkingDevicePackageReel SizeTape WidthQuantityF15S60SFFP15S60STUTO-220-2L–50 1. Cathode 2. Anode 1. Cathode 2. Anode TO-220-2L
